Mashpee Series - PEDON DESCRIPTION S07MA023004

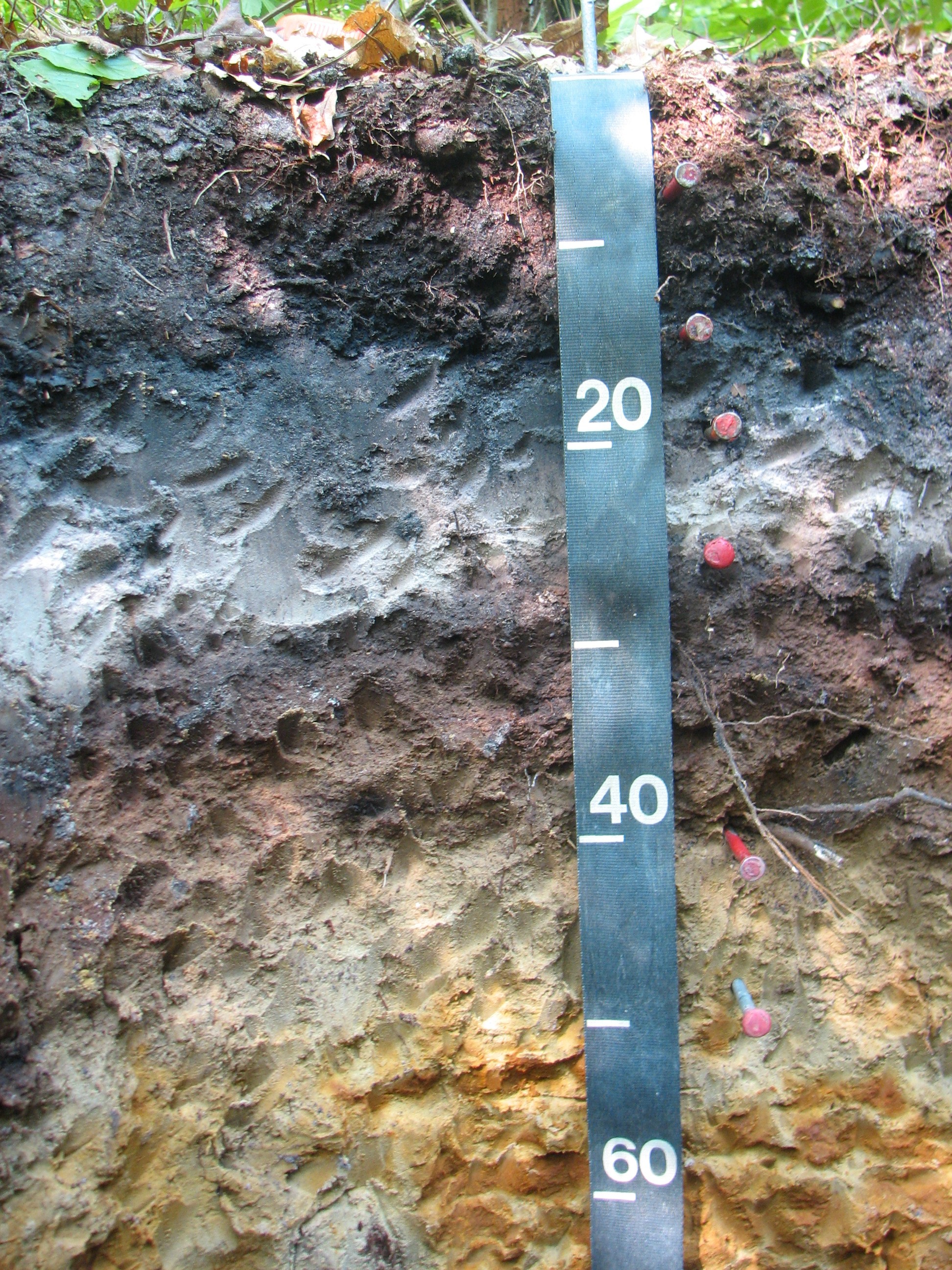

Click for Photo of this pedon

Click Here for Laboratory AnalysisClick Here for Water Table Data
Site Record ID: 4
Pedon Record ID: 4
Pedon ID: S07MA023004-Mashpee
Site ID: S07MA023004-Mashpee
Lab Pedon #:S07MA023004
Description Date: 8/2/2007
Print Date: 9/12/2007
Describer: Al Averill, Bill Taylor, and Rob Tunstead
Site Notes: Text: Only a small portion of the Bs2 could be bulk bagged. The horizon was quite thin and variable.
Pedon Notes: Text: The pedon is relatively devoid of rock fragments. The pedon is directly adjacent to WARE02P and WARE02D well sites. The Bs2 horizon could also be the top of the C1 layer.
Soil Name As Described/Sampled: Mashpee
Soil Name As Correlated:
Classification: Sandy, isotic, mesic Typic Endoaquods
Pedon Type: Typical pedon for series
Pedon Purpose: Full pedon description
Taxon Kind: Series
SSURGO MU: 37A - Massasoit-Mashpee complex, 0 to 3 percent slopes
Non-MLRA Soil Survey Area: MA023 - Plymouth County, Massachusetts
Land Resource Region: R - Northeastern Forage and Forest Region
MLRA: 144A - New England and Eastern New York Upland, Southern Part
MLRA Soil Survey Area: SS144A - New England and Eastern New York Upland, Southern Part MLRA Soil Survey
County or Parish: MA023 - Plymouth
State or Territory: MA - Massachusetts
Country: US - United States
7.5' Quad: 41070-F7 - Marion, Massachusetts
MLRA Region Office Area: 12 - Amherst, MA
Physiographic Division: AH - Appalachian Highlands
Physiographic Province: NE - New England Province
Physiographic Section: SLS - Seaboard lowland section
Lat/Long: 41°44’57.5” north, 70°46’20.7” west
UTM: 352635E, 4623460N -- Datum NAD83, Zone 19
Location Description: In the town of Wareham, 421 meters due west of Squirrel Island Road, 175 meters due north of Cohackett Brook.
Legal Description:
Landscape: outwash plain
Landform: outwash plain
Microfeature:
Anthropogenic Feature:
Geomorphic Component: Tread
Profile Pos: Footslope: on middle third
Slope: 1 percent
Elevation: 4.6 meters
Aspect: 110°
Shape: up/down: Linear; across: Linear
Complexity: Simple
Flooding:
Ponding: Occasional; long; Jan
Drainage: Poorly drained
Runoff: Very low
Permeability: Rapid
Erosion: None - deposition
Primary Earth Cover: Tree cover; Secondary Earth Cover: Intermixed conifers and hardwoods
Plant Association Name: Tree cover
Existing Vegetation: PIRI - pitch pine (Pinus rigida); CLAL3 - coastal sweetpepperbush (Clethra alnifolia); VACO - highbush blueberry (Vaccinium corymbosum); QUAL - white oak (Quercus alba); LIST2 - sweetgum (Liquidambar styraciflua); ACRU - red maple (Acer rubrum); CHIMA - prince's pine (Chimaphila)
Parent Materials: sandy glaciofluvial deposits derived from igneous rock
Surface Fragments:
Bedrock:
Particle Size Control Section: 25 to 100 centimeters
Diagnostic Features: Ochric epipedon: 0 to 23 centimeters, Hemic soil material: 0 to 5 centimeters, Hemic soil material: 0 to 5 centimeters, Sapric soil material: 5 to 12 centimeters, Albic horizon: 17 to 23 centimeters, Spodic horizon: 23 to 38 centimeters and Spodic horizon: 46 to 86 centimeters

SlopeElevationAspectMAATMSATMWATMAPFrost-Free DaysDrainage ClassSlope LengthUpslope Length
1 percent4.6 meters110°9.4° C20.5° C-1.9° C1225 millimeters201 dayspoorly

Oe --- 0 to 5 centimeters; very dark brown (7.5YR 2.5/2) moist, broken face, moderately decomposed plant material; weak medium granular structure; very friable; moderately few very coarse roots throughout, common coarse roots throughout, many medium roots throughout, many fine roots throughout and many very fine roots throughout; Chlorophenol red pH method; pH was measured but off the chart.; clear wavy boundary.

Oa --- 5 to 12 centimeters; black (10YR 2/1) moist, broken face, highly decomposed plant material; moderate medium granular structure; very friable; moderately few very coarse roots throughout, common coarse roots throughout, many medium roots throughout, many fine roots throughout and many very fine roots throughout; Chlorophenol red pH method; pH was measured but was off the charts.; abrupt smooth boundary.

AE --- 12 to 17 centimeters; 50 percent very dark gray (10YR 3/1) moist and 50 percent gray (10YR 5/1) moist, fine sand; gray (10YR 5/1) dry; weak medium subangular blocky and weak fine subangular blocky structure; very friable; moderately few fine roots throughout and moderately few very fine roots throughout; negative reaction to alpha-alpha' dipyridyl; very strongly acid, pH 5, Chlorophenol red; A negative reaction to alpha, alpha dipyridyl occurred. The horizon is generally dark with stripped sand grains.; clear smooth boundary.

Eg --- 17 to 23 centimeters; 80 percent gray (10YR 6/1) moist and 20 percent grayish brown (10YR 5/2) moist, fine sand; weak fine subangular blocky structure; very friable; moderately few medium roots throughout, moderately few fine roots throughout and moderately few very fine roots throughout; 1 percent subrounded 2 to 5 millimeters fine gravel sized mixed rock fragments; negative reaction to alpha-alpha' dipyridyl; strongly acid, pH 5.2, Chlorophenol red; The horizon is many different shades of gray. Negative alpha, alpha reaction.; abrupt smooth boundary.

Bhs --- 23 to 38 centimeters; 60 percent very dark brown (7.5YR 2.5/2) moist and 40 percent dark brown (7.5YR 3/3) moist, fine sand; weak medium subangular blocky parting to weak fine granular structure; friable; moderately few coarse roots throughout, common medium roots throughout, common fine roots throughout and common very fine roots throughout; negative reaction to alpha-alpha' dipyridyl; strongly acid, pH 5.2, Chlorophenol red; Negative alpha, alpha reaction.; clear wavy boundary.

Bw --- 38 to 46 centimeters; light olive brown (2.5Y 5/4) moist, fine sand; weak medium subangular blocky and weak fine subangular blocky structure; friable; moderately few fine roots throughout and moderately few very fine roots throughout; 2 percent (common) coarse prominent irregular noncemented yellowish red (5YR 5/6), moist, masses of oxidized iron clear throughout; negative reaction to alpha-alpha' dipyridyl; strongly acid, pH 5.4, Chlorophenol red; Negative alpha, alpha reaction.; clear wavy boundary.

Bs1 --- 46 to 64 centimeters; 80 percent yellowish red (5YR 4/6) moist and 20 percent yellowish brown (10YR 5/4) moist, fine sand; weak medium subangular blocky structure; firm; moderately few fine roots in mat at top of horizon; 5 percent (common) coarse distinct irregular noncemented red (2.5YR 4/6), moist, masses of oxidized iron clear on faces of peds; strongly acid, pH 5.4, Chlorophenol red; 80% of the horizon is firm in consistence and the other 20% is friable.; clear smooth boundary.

Bs2 --- 64 to 86 centimeters; strong brown (7.5YR 5/6) moist, fine sand; massive; friable; 2 percent (common) medium prominent spherical noncemented light brownish gray (2.5Y 6/2), moist, iron depletions clear throughout, 4 percent (common) coarse faint irregular noncemented yellowish red (5YR 4/6), moist, masses of oxidized iron clear throughout and 4 percent (common) medium faint irregular noncemented yellowish red (5YR 4/6), moist, masses of oxidized iron clear throughout; moderately acid, pH 5.6, Chlorophenol red; Consistence is slightly brittle.; clear irregular boundary.

C --- 86 to 176 centimeters; light yellowish brown (2.5Y 6/3) moist, fine sand; massive; friable; moderately few medium roots throughout; 1 percent (few) fine prominent cylindrical noncemented reddish brown (5YR 4/4), moist, masses of oxidized iron clear throughout; strongly acid, pH 5.4, Chlorophenol red.

Laboratory Analysis - Pedon Description Above
*** Primary Characterization Data ***
Pedon ID: S07MA023004 ( Plymouth, Massachusetts ) Print Date: Jan 27 2008 11:12AM


Sampled as on Jul 31, 2007 : Mashpee ; Sandy, isotic, mesic Typic Endoaquod
Revised to :
United States Department of Agriculture
SSL - Project C2007USMA119   Plymouth Co. Natural Resources Conservation Service
- Site ID S07MA023004-Mashphee   Lat: 41° 44' 57.50" north  Long: 70° 46' 20.70" west  NAD83  MLRA: 144A National Soil Survey Center
- Pedon No. 07N0688 Soil Survey Laboratory
- General Methods 1B1A, 2A1, 2B Lincoln, Nebraska 68508-3866

Layer Horizon Orig Hzn Depth (cm) Field Label 1 Field Label 2 Field Label 3 Field Texture Lab Texture

07N04208 Oe   0-5 S07MA023-004-1
07N04209 Oa   5-12 S07MA023-004-2
07N04210 AE   12-17 S07MA023-004-3       LFS
07N04211 Eg   17-23 S07MA023-004-4       LFS
07N04212 Bhs   23-38 S07MA023-004-5       LFS
07N04213 Bw   38-46 S07MA023-004-6       LVFS
07N04214 Bs1   46-64 S07MA023-004-7       LFS
07N04215 Bs2   64-86 S07MA023-004-8       LFS
07N04216 C   86-176 S07MA023-004-9       FS

Pedon Calculations
Calculation Name Result Units of Measure

Weighted Particles, 0.1-75mm, 75 mm Base 42 % wt
Volume, >2mm, Weighted Average 1 % vol
Clay, total, Weighted Average 0 % wt
Clay, carbonate free, Weighted Average 0 % wt

Weighted averages based on control section: 25-100 cm


*** Primary Characterization Data ***
Pedon ID: S07MA023004 ( Plymouth, Massachusetts ) Print Date: Jan 27 2008 11:12AM
Sampled As : Mashpee   Sandy, isotic, mesic Typic Endoaquod
USDA-NRCS-NSSC-National Soil Survey Laboratory ; Pedon No.  07N0688

PSDA  &  Rock Fragments -1- -2- -3- -4- -5- -6- -7- -8- -9- -10- -11- -12- -13- -14- -15- -16- -17-

(- - - - - Total - - - - - -) (- - Clay - - -) (- - - - Silt - - - - -) (- - - - - - - - - - - - Sand - - - - - - - - - - - -) ( Rock Fragments   (mm) )
Clay Silt Sand Fine CO3 Fine Coarse VF F M C VC (- - - - - - - - Weight - - - - - - - -) >2 mm
< .002 .05 < < .002 .02 .05 .10 .25 .5 1 2 5 20 .1- wt %
Depth .002 -.05 -2 .0002 .002 -.02 -.05 -.10 -.25 -.50 -1 -2 -5 -20 -75 75 whole
Layer (cm) Horz Prep (- - - - - - - - - - - - - - - - - - - - - - - - - - % of <2mm Mineral Soil - - - - - - - - - - - - - - - - - - - - - - - - - - -) (- - - - - - - % of <75mm - - - - - -) soil
      3A1a1a         3A1a1a   3A1a1a 3A1a1a 3A1a1a 3A1a1a 3A1a1a

07N04208 0-5 Oe S                         -- -- -- -- --
07N04209 5-12 Oa S                         -- -- -- -- --
07N04210 12-17 AE S 0.3 17.5 82.2     7.1 10.4 18.6 52.6 8.6 2.0 0.4 tr tr -- 64 1
07N04211 17-23 Eg S 0.9 16.3 82.8     6.0 10.3 23.7 46.6 9.7 2.2 0.6 1 1 -- 60 2
07N04212 23-38 Bhs S 0.5 14.2 85.3     4.7 9.5 26.8 45.1 9.2 2.9 1.3 4 6 -- 63 10
07N04213 38-46 Bw S -- 15.1 84.9     1.5 13.6 51.7 30.7 1.7 0.4 0.4 1 -- -- 34 1
07N04214 46-64 Bs1 S -- 15.2 84.8     1.7 13.5 40.5 44.1 0.2 tr tr -- -- -- 44 --
07N04215 64-86 Bs2 S -- 23.8 76.2     3.4 20.4 49.3 26.3 0.6 tr -- -- -- -- 27 --
07N04216 86-176 C S -- 13.3 86.7     1.7 11.6 39.8 44.5 2.3 0.1 tr -- -- -- 47 --

Bulk Density  &  Moisture -1- -2- -3- -4- -5- -6- -7- -8- -9- -10- -11- -12- -13-

(Bulk Density) Cole (- - - - - - - - - - - Water Content - - - - - - - - - - -) WRD Aggst
33 Oven Whole 6 10 33 1500 1500 kPa Ratio Whole Stabl (- - Ratio/Clay - -)
Depth kPa Dry Soil kPa kPa kPa kPa Moist AD/OD Soil 2-0.5mm CEC7 1500 kPa
Layer (cm) Horz Prep (- - - g cm-3 - - -)   (- - - - - - - - - - - - % of < 2mm - - - - - - - - - - - -) cm3 cm-3 %
      DbWR1 DbWR1     DbWR1 DbWR1 3C2a1a   3D1

07N04208 0-5 Oe S             106.6   1.107
07N04209 5-12 Oa S             45.2   1.091
07N04210 12-17 AE S             4.5   1.008     24.33 15.00
07N04211 17-23 Eg S 1.44 1.47 0.007   14.3 11.2 1.5   1.002 0.14   1.56 1.67
07N04212 23-38 Bhs S 1.09 1.20 0.031   39.0 35.3 12.1   1.033 0.24   42.00 24.20
07N04213 38-46 Bw S 1.30 1.36 0.015   25.0 19.2 2.9   1.009 0.21
07N04214 46-64 Bs1 S 1.47 1.62 0.033   22.8 18.0 1.8   1.005 0.24
07N04215 64-86 Bs2 S 1.48 1.57 0.020   14.4 11.2 1.6   1.004 0.14
07N04216 86-176 C S 1.48 1.54 0.013   10.5 6.3 1.4   1.002 0.07


*** Primary Characterization Data ***
Pedon ID: S07MA023004 ( Plymouth, Massachusetts ) Print Date: Jan 27 2008 11:12AM
Sampled As : Mashpee   Sandy, isotic, mesic Typic Endoaquod
USDA-NRCS-NSSC-National Soil Survey Laboratory ; Pedon No.  07N0688

Water Content -1- -2- -3- -4- -5- -6- -7- -8- -9- -10- -11- -12- -13-

(- - Atterberg - -) (- - - - - Bulk Density - - - - -) (- - - - - - - - - - - - - - - - - - - - - - - Water Content - - - - - - - - - - - - - - - - - - - - -)
(- - - Limits - - -) Field Recon Recon Field Recon (- - - - - - - - - - - - - - Sieved Samples - - - - - - - - - - - - -)
LL PI 33 Oven 33 6 10 33 100 200 500
Depth kPa Dry kPa kPa kPa kPa kPa kPa kPa
Layer (cm) Horz Prep pct <0.4mm (- - - - - - - - g cm-3 - - - - - - -) (- - - - - - - - - - - - - - - - - - - - - - - % of < 2mm - - - - - - - - - - - - - - - - - - - - - -)
                            3C1e1a

07N04210 12-17 AE S                       5.0
07N04211 17-23 Eg S                       2.6
07N04212 23-38 Bhs S                       15.3
07N04213 38-46 Bw S                       4.2
07N04214 46-64 Bs1 S                       2.4
07N04215 64-86 Bs2 S                       2.0
07N04216 86-176 C S                       1.7

Carbon  &  Extractions -1- -2- -3- -4- -5- -6- -7- -8- -9- -10- -11- -12- -13- -14- -15- -16- -17- -18-

(- - - - - Total - - - - -) Org C/N (- - - Dith-Cit Ext - - -) (- - - - - - Ammonium Oxalate Extraction - - - - - -) (- - - Na Pyro-Phosphate - - -)
Depth C N S C Ratio Fe Al Mn Al+˝Fe ODOE Fe Al Si Mn C Fe Al Mn
Layer (cm) Horz Prep (- - - - - - % of <2 mm - - - - - -) (- - - - - - - - - - - - - - - - - - - - % of < 2mm - - - - - - - - - - - - - - - - - -) mg kg-1 (- - - - - - % of < 2mm - - - - -)
      4H2a 4H2a 4H2a     4G1 4G1 4G1   4G2a 4G2a 4G2a 4G2a 4G2a

07N04208 0-5 Oe S 41.64 1.576 0.22   26
07N04209 5-12 Oa S 34.97 1.177 0.08   30
07N04210 12-17 AE S 2.48 0.119 --   21 -- 0.1 -- 0.09 0.09 0.05 0.07 -- --
07N04211 17-23 Eg S 0.32 0.036 --   9 -- -- -- 0.02 0.03 0.01 0.02 -- --
07N04212 23-38 Bhs S 4.71 0.204 0.02   23 -- 1.0 -- 0.99 1.16 0.06 0.96 0.09 --
07N04213 38-46 Bw S 0.71 0.069 0.02   10 0.4 0.4 -- 0.48 0.10 0.15 0.40 0.09 --
07N04214 46-64 Bs1 S 0.37 0.015 0.01   24 0.8 0.2 -- 0.38 0.05 0.36 0.20 0.04 --
07N04215 64-86 Bs2 S 0.21 0.001 --   215 0.6 0.1 -- 0.27 0.03 0.27 0.14 0.03 1.0
07N04216 86-176 C S 0.09 -- tr     -- tr -- 0.10 0.02 0.02 0.09 0.02 --


*** Primary Characterization Data ***
Pedon ID: S07MA023004 ( Plymouth, Massachusetts ) Print Date: Jan 27 2008 11:12AM
Sampled As : Mashpee   Sandy, isotic, mesic Typic Endoaquod
USDA-NRCS-NSSC-National Soil Survey Laboratory ; Pedon No.  07N0688

CEC  &  Bases -1- -2- -3- -4- -5- -6- -7- -8- -9- -10- -11- -12- -13- -14-

(- - - - - - NH4OAC Extractable Bases - - - - -) CEC8 CEC7 ECEC (- - - - Base - - - -)
Sum Acid- Extr KCl Sum NH4 Bases Al (- Saturation -)
Depth Ca Mg Na K Bases ity Al Mn Cats OAC +Al Sat Sum NH4OAC
Layer (cm) Horz Prep (- - - - - - - - - - - - - - - - - cmol(+) kg-1 - - - - - - - - - - - - - - - - - - -) mg kg-1 (- - - - cmol(+) kg-1 - - -) (- - - - - - - - % - - - - - - - -)
      4B1a1a 4B1a1a 4B1a1a 4B1a1a   4B2b1a1 4B3a1a 4B3a1a   4B1a1a

07N04208 0-5 Oe S 0.5 1.4 -- 1.2   156.8 5.9 0.3   86.9     2
07N04209 5-12 Oa S -- -- -- 0.7   157.6 15.4 0.1   71.5     0
07N04210 12-17 AE S -- -- -- 0.1 0.1 15.4 3.3 -- 15.5 7.3 3.4 97 1 1
07N04211 17-23 Eg S -- -- -- 0.1 0.1 3.8 1.1 -- 3.9 1.4 1.2 92 3 7
07N04212 23-38 Bhs S -- -- -- 0.1 0.1 48.6 5.9 -- 48.7 21.0 6.0 98 0 0
07N04213 38-46 Bw S -- -- -- tr tr 11.0 1.0 -- 11.0 3.6     0 1
07N04214 46-64 Bs1 S -- -- -- tr tr 5.6 0.5 -- 5.6 2.1     0 1
07N04215 64-86 Bs2 S -- -- 0.1 0.1 0.2 5.0 0.4 -- 5.2 1.9 0.6 67 4 11
07N04216 86-176 C S -- -- -- tr tr 2.6 0.3 -- 2.6 1.2     1 2

Salt -1- -2- -3- -4- -5- -6- -7- -8- -9- -10- -11- -12- -13- -14- -15- -16- -17- -18- -19- -20-

(- - - - - - - - - - - - - - - - - - - - - - - - Water Extracted From Saturated Paste - - - - - - - - - - - - - - - - - - - - - - - -) Pred
Total Elec Elec Exch
Depth Ca Mg Na K CO3 HCO3 F Cl PO4 Br OAC SO4 NO2 NO3 H2O Salts Cond Cond Na SAR
Layer (cm) Horz Prep (- - - - - mmol(+) L-1 - - - - -) (- - - - - - - - - - - - - - - - - - - - - - mmol(-) L-1 - - - - - - - - - - - - - - - - - - - -) (- - - - % - - - -) (- - dS m-1 - -) %


07N04210 12-17 AE S                                     --
07N04211 17-23 Eg S                                     --
07N04212 23-38 Bhs S                                     --
07N04213 38-46 Bw S                                     --
07N04214 46-64 Bs1 S                                     --
07N04215 64-86 Bs2 S                                     4
07N04216 86-176 C S                                     --


*** Primary Characterization Data ***
Pedon ID: S07MA023004 ( Plymouth, Massachusetts ) Print Date: Jan 27 2008 11:12AM
Sampled As : Mashpee   Sandy, isotic, mesic Typic Endoaquod
USDA-NRCS-NSSC-National Soil Survey Laboratory ; Pedon No.  07N0688

pH  &  Carbonates -1- -2- -3- -4- -5- -6- -7- -8- -9- -10- -11-

(- - - - - - - - - - - - - - - - - - pH - - - - - - - - - - - - - - - - -) (- - Carbonate - -) (- - Gypsum - - -)
CaCl2 As CaCO3 As CaSO4*2H2O Resist
Depth 0.01M H2O Sat <2mm <20mm <2mm <20mm ohms
Layer (cm) Horz Prep KCl 1:2 1:1 Paste Sulf NaF (- - - - - - - - - - - - % - - - - - - - - - - -) cm-1
        4C1a2a 4C1a2a     4C1a1a1

07N04208 0-5 Oe S   2.9 4.0
07N04209 5-12 Oa S   3.2 3.8
07N04210 12-17 AE S   3.4 4.2     7.4
07N04211 17-23 Eg S   3.9 4.5     7.7
07N04212 23-38 Bhs S   4.2 4.9     11.6
07N04213 38-46 Bw S   4.7 5.2     11.1
07N04214 46-64 Bs1 S   4.7 5.1     10.5
07N04215 64-86 Bs2 S   4.7 5.1     10.1
07N04216 86-176 C S   4.7 5.0     9.6

Organic -1- -2- -3- -4- -5- -6- -7- -8- -9- -10- -11- -12- -13- -14- -15- -16- -17-

Mineral OM OM+ (- Total -) Fiber Content NaPyro Decomp Limnic (- - pH - -) (- - Bulk Density - -) Proj
Depth Content TC*1.724 Min C N C/N Unrub Rub Color State Matter CaCl2 H2O 33 kPa 33 kPa rewet OD Subs
Layer (cm) Horz Prep (- - - - - - - - % - - - - - - - -) ratio % (by vol) g cm-3 cm cm-1
      5A     4H2a 4H2a   5 5 5     5 4C1a2a

07N04208 0-5 Oe S   72 103 41.64 1.576 26       hemic     4.0       --
07N04208 0-5 Oe MW 31           40 28 10YR 8/3     3.1
07N04209 5-12 Oa S   60 101 34.97 1.177 30       hemic     3.8       --
07N04209 5-12 Oa MW 41           36 24 10YR 6/3     3.1
07N04210 12-17 AE S       2.48 0.119 21             4.2       1
07N04211 17-23 Eg S       0.32 0.036 9             4.5       1
07N04212 23-38 Bhs S       4.71 0.204 23             4.9       4
07N04213 38-46 Bw S       0.71 0.069 10             5.2       tr
07N04214 46-64 Bs1 S       0.37 0.015 24             5.1       --
07N04215 64-86 Bs2 S       0.21 0.001 215             5.1       --
07N04216 86-176 C S       0.09 --               5.0       --


*** Primary Characterization Data ***
Pedon ID: S07MA023004 ( Plymouth, Massachusetts ) Print Date: Jan 27 2008 11:12AM
Sampled As : Mashpee   Sandy, isotic, mesic Typic Endoaquod
USDA-NRCS-NSSC-National Soil Survey Laboratory ; Pedon No.  07N0688

Phosphorous -1- -2- -3- -4- -5- -6- -7- -8- -9- -10-

(- - - - - - - - - - - - - - - - - - - - - Phosphorous - - - - - - - - - - - - - - - - - -)
Melanic NZ Acid Bray Bray Olsen H2O Citric Mehlich Extr
Depth Index Oxal 1 2 Acid III NO3
Layer (cm) Horz Prep % (- - - - - - - - - - - - - - - - - - - - -mg kg-1 - - - - - - - - - - - - - - - - -) mg kg-1
        4D8a1 4G2a

07N04210 12-17 AE S   16 79.0
07N04211 17-23 Eg S   10 15.3
07N04212 23-38 Bhs S   88 164.2
07N04213 38-46 Bw S   39 77.6
07N04214 46-64 Bs1 S   28 43.9
07N04215 64-86 Bs2 S   20 102.1
07N04216 86-176 C S   11 73.6


*** Primary Characterization Data ***
Pedon ID: S07MA023004 ( Plymouth, Massachusetts ) Print Date: Jan 27 2008 11:12AM
Sampled As : Mashpee   Sandy, isotic, mesic Typic Endoaquod
USDA-NRCS-NSSC-National Soil Survey Laboratory ; Pedon No.  07N0688




Sand - Silt Mineralogy (2.0-0.002 mm) -1- -2- -3- -4- -5- -6- -7- -8- -9- -10- -11- -12- -13- -14- -15- -16- -17- -18-
    X-Ray Thermal Optical EGME Inter
          Tot Re Grain Count Retn preta
  Depth   Fract       7B1a2   tion
Layer (cm) Horz ion ( - - - - - - - - peak size - - - - - - - - - ) (- - - - - - - - % - - - - - - - - - -) (- - - - - - - - - - - - - - - - - - - - % - - - - - - - - - - - - - - - - - -) mg g-1
07N04213 38-46 Bw vfs                   78 QZ 76 FK 14 AR 3 PR 2 MS 1 FE 1   SMIX
                            GL 1 CD 1 BT 1 ZR tr HN tr OP tr
                            TM tr RU tr


FRACTION INTERPRETATION:
vfs - Very Fine Sand, 0.05-0.1 mm


MINERAL INTERPRETATION:
AR - Weatherable Aggregates BT - Biotite CD - Chert (Chalcedony FE - Iron Oxides (Goethite FK - Potassium Feldspar
GL - Glauconite HN - Hornblende MS - Muscovite OP - Opaques PR - Pyroxene
QZ - Quartz RU - Rutile TM - Tourmaline ZR - Zircon


INTERPRETATION (BY HORIZON):
SMIX - Mixed Sand


*** Supplementary Characterization Data ***
Pedon ID: S07MA023004 ( Plymouth, Massachusetts ) Print Date: Jan 27 2008 11:12AM


Sampled as on Jul 31, 2007 : Mashpee ; Sandy, isotic, mesic Typic Endoaquod
Revised to :
United States Department of Agriculture
SSL - Project C2007USMA119   Plymouth Co. Natural Resources Conservation Service
- Site ID S07MA023004-Mashphee   Lat: 41° 44' 57.50" north  Long: 70° 46' 20.70" west  NAD83  MLRA: 144A National Soil Survey Center
- Pedon No. 07N0688 Soil Survey Laboratory
- General Methods 1B1A, 2A1, 2B Lincoln, Nebraska 68508-3866

Tier 1 -1- -2- -3- -4- -5- -6- -7- -8- -9- -10- -11- -12- -13- -14- -15- -16- -17- -18- -19- -20- -21- -22- -23- -24- -25-

(- - - - - - - - - - - - - - - - - - - - - - Engineering PSDA - - - - - - - - - - - - - - - - - - - - -) (- - - - - Cumulative Curve Fractions - - - - -) (<75mm) ( Atter- ) ( Gradation )
Percentage Passing Sieve USDA Less Than Diameters (mm) at berg Uni- Cur-
Depth 3 2 3/2 1 3/4 3/8 4 10 40 200 20 5 2 1. .5 .25 .10 .05 60 50 10 LL PI fmty vtur
Layer (cm) Horz Prep (-------------------Inches-------------------) (---------Number---------) (------Microns----) (---------Millimeter----------) (-----Percentile---) (----%----) CU CC


07N04208 0-5 Oe S 100 100 100 100 100 100 100 100
07N04209 5-12 Oa S 100 100 100 100 100 100 100 100
07N04210 12-17 AE S 100 100 100 100 100 100 100 100 95 26 7 3 tr 100 98 89 36 18 0.15 0.127 0.025     6.0 1.6
07N04211 17-23 Eg S 100 100 100 100 100 100 99 98 93 29 7 3 1 97 95 86 40 17 0.15 0.122 0.027     5.6 1.4
07N04212 23-38 Bhs S 100 100 100 100 100 97 94 90 84 26 5 2 tr 89 86 78 37 13 0.17 0.133 0.035     4.7 1.1
07N04213 38-46 Bw S 100 100 100 100 100 100 100 99 98 47 1 1 -- 99 98 97 66 15 0.09 0.080 0.036     2.6 1.1
07N04214 46-64 Bs1 S 100 100 100 100 100 100 100 100 100 39 2 1 -- 100 100 100 56 15 0.11 0.091 0.035     3.1 1.1
07N04215 64-86 Bs2 S 100 100 100 100 100 100 100 100 100 55 3 1 -- 100 100 99 73 24 0.08 0.072 0.027     3.1 1.3
07N04216 86-176 C S 100 100 100 100 100 100 100 100 99 36 2 1 -- 100 100 98 53 13 0.12 0.095 0.039     3.0 1.0

Tier 2 -26- -27- -28- -29- -30- -31- -32- -33- -34- -35- -36- -37- -38- -39- -40- -41- -42- -43- -44- -45- -46- -47- -48- -49- -50-

(- - - - - - - - - - - - - - - - - - - - - - Weight Fractions - - - - - - - - - - - - - - - - - - - - -) (- - - - - - - - - - - Weight Per Unit Volume (g cm-3 )- - - - - - - -) (- - Void - -)
Whole Soil (mm) <75 mm Fraction Whole Soil <2 mm Fraction Ratios
>2 250 250 75 75 20 5 75 75 20 5 Soil Sur Engineering Soil Survey Engineering At 33 kPa
Depth -UP -75 -2 -20 -5 -2 <2 -2 -20 -5 -2 <2 33 Oven Moist Satur 33 1500 Oven Moist Satur Whole <2
Layer (cm) Horz Prep (------------------- % of Whole Soil ------------------) (--------- % of <75 mm ---------) kPa -dry -ated kPa kPa -dry -ated Soil mm
                                        DbWR1   DbWR1

07N04208 0-5 Oe S --     -- -- -- -- 100 -- -- -- -- 100 1.45     1.90
07N04209 5-12 Oa S --     -- -- -- -- 100 -- -- -- -- 100 1.45     1.90
07N04210 12-17 AE S 1     1 -- tr tr 99 1 -- tr tr 99 1.46     1.91
07N04211 17-23 Eg S 2     2 -- 1 1 98 2 -- 1 1 98 1.45 1.48 1.61 1.90 1.44 1.47 1.47 1.60 1.90 0.83 0.84
07N04212 23-38 Bhs S 10     10 -- 6 4 90 10 -- 6 4 90 1.17 1.28 1.54 1.73 1.09 1.17 1.20 1.47 1.68 1.26 1.43
07N04213 38-46 Bw S 1     1 -- -- 1 99 1 -- -- 1 99 1.31 1.37 1.56 1.82 1.30 1.35 1.36 1.55 1.81 1.02 1.04
07N04214 46-64 Bs1 S --     -- -- -- -- 100 -- -- -- -- 100 1.47 1.62 1.73 1.92 1.47 1.61 1.62 1.73 1.92 0.80 0.80
07N04215 64-86 Bs2 S --     -- -- -- -- 100 -- -- -- -- 100 1.48 1.57 1.64 1.92 1.48 1.56 1.57 1.65 1.92 0.79 0.79
07N04216 86-176 C S --     -- -- -- -- 100 -- -- -- -- 100 1.48 1.54 1.57 1.92 1.48 1.53 1.54 1.57 1.92 0.79 0.79



Tier 3 -51- -52- -53- -54- -55- -56- -57- -58- -59- -60- -61- -62- -63- -64- -65- -66- -67- -68- -69- -70- -71- -72- -73- -74- -75-

(- - - - - - - - - - - - - - - - - Volume Fractions - - - - - - - - - - - - - - - -) C (- - - - - - - Ratios To Clay - - - - - -) (- - Linear Extensiblity - -) (- - WRD - -)
Whole Soil (mm) At 33 kPa /N <2 mm Fraction Whole Soil <2 mm Whole <2
>2 250 250 75 75 20 5 2- .05- LT Pores Rat Fine CEC 1500 LEP 33 kPa to % Soil mm
Depth -UP -75 -2 -20 -5 -2 <2 .05 .002 .002 D F -io Clay Sum NH4- kPa 33 1500 Oven 1500 Oven
Layer (cm) Horz Prep (----------------------------- % of Whole Soil ---------------------------) Cats OAC H2O kPa kPa -dry kPa -dry (---in3/in3---)


07N04208 0-5 Oe S -- -- -- -- -- -- -- 100           26
07N04209 5-12 Oa S -- -- -- -- -- -- -- 100           30
07N04210 12-17 AE S 1 -- -- 1 -- -- tr 99 45 10 tr     21   51.67   15.00
07N04211 17-23 Eg S 1 -- -- 1 -- 1 1 99 44 9 tr 29 16 9   4.33   1.67 0.778 0.7 0.7 0.7 0.7 0.14 0.14
07N04212 23-38 Bhs S 5 -- -- 4 -- 3 2 95 33 6 tr 19 37 23   97.40   24.20 6.600 2.2 3.0 2.4 3.3 0.24 0.25
07N04213 38-46 Bw S tr -- -- tr -- -- tr 100 42 7 -- 26 25 10           1.3 1.5 1.3 1.5 0.21 0.21
07N04214 46-64 Bs1 S -- -- -- -- -- -- -- 100 47 8 -- 19 26 24           3.1 3.3 3.1 3.3 0.24 0.24
07N04215 64-86 Bs2 S -- -- -- -- -- -- -- 100 42 13 -- 28 16 215           1.8 2.0 1.8 2.0 0.14 0.14
07N04216 86-176 C S -- -- -- -- -- -- -- 100 48 7 -- 35 9             1.1 1.3 1.1 1.3 0.07 0.07

Tier 4 -76- -77- -78- -79- -80- -81- -82- -83- -84- -85- -86- -87- -88- -89- -90- -91- -92- -93- -94- -95- -96- -97- -98-

(- - - - - - - - - - - - - - - - - - - Weight Fractions - Clay Free - - - - - - - - - - - - - - - - - -) Text PSDA (mm) pH Elect. Part-
(--------------- Whole Soil ---------------) (------------------- <2 mm Fraction -------------------) -ure Sand Silt Clay Ca Res- Con- -icle
>2 75 20 2- .05- < (------------- Sands -------------) (--- Silts ---) Cl by 2- .05- < Cl2 ist. duct Den-
Depth -20 -2 .05 .002 .002 VC C M F VF C F ay PSDA .05 .002 .002 .01M ohms dS m-1 sity
Layer (cm) Horz Prep (- % of >2 mm Sand and Silt -) (------------------% of Sand and Silt -------------) <2 mm (---- % of 2 mm ----) (-------- <2 mm --------) g cm-3
                                        3A1a1a 4C1a2a

07N04208 0-5 Oe S                                     2.9
07N04209 5-12 Oa S                                     3.2
07N04210 12-17 AE S 1 1 -- 82 17 tr tr 2 9 53 19 10 7 tr lfs 82.2 17.5 0.3 3.4
07N04211 17-23 Eg S 2 2 2 82 16 1 1 2 10 47 24 10 6 1 lfs 82.8 16.3 0.9 3.9
07N04212 23-38 Bhs S 10 10 10 77 13 tr 1 3 9 45 27 10 5 1 lfs 85.3 14.2 0.5 4.2
07N04213 38-46 Bw S             tr tr 2 31 52 14 2 -- lvfs 84.9 15.1 -- 4.7
07N04214 46-64 Bs1 S             -- -- tr 44 41 14 2 -- lfs 84.8 15.2 -- 4.7
07N04215 64-86 Bs2 S             -- -- 1 26 49 20 3 -- lfs 76.2 23.8 -- 4.7
07N04216 86-176 C S             -- tr 2 45 40 12 2 -- fs 86.7 13.3 -- 4.7


*** Taxonomy Characterization Data ***
Pedon ID: S07MA023004 ( Plymouth, Massachusetts ) Print Date: Jan 27 2008 11:12AM


Sampled as on Jul 31, 2007 : Mashpee ; Sandy, isotic, mesic Typic Endoaquod
Revised to :
United States Department of Agriculture
SSL - Project C2007USMA119   Plymouth Co. Natural Resources Conservation Service
- Site ID S07MA023004-Mashphee   Lat: 41° 44' 57.50" north  Long: 70° 46' 20.70" west  NAD83  MLRA: 144A National Soil Survey Center
- Pedon No. 07N0688 Soil Survey Laboratory
- General Methods 1B1A, 2A1, 2B Lincoln, Nebraska 68508-3866

Taxonomy Tier 1 -1- -2- -3- -4- -5- -6- -7- -8- -9- -10-

Fine CaCO3 1500 .1-75 Bulk Cole Vol Resist
Clay Clay Clay kPa Clay mm Den Whole % of Min
Depth <.002 <.0002 <.002 /Clay Est Frac 33 kPa Soil Whole %
Layer (cm) Horz Prep (---------% of <2 mm-------) (-------- % --------) g cm-3 cm cm-1
      3A1a1a           DbWR1

07N04208 0-5 Oe S           --     --
07N04209 5-12 Oa S           --     --
07N04210 12-17 AE S 0.3     15.00 5.1 64     1
07N04211 17-23 Eg S 0.9     1.67 3.0 60 1.44 0.007 1
07N04212 23-38 Bhs S 0.5     24.20 18.5 63 1.09 0.031 5
07N04213 38-46 Bw S --         34 1.30 0.015 tr 78
07N04214 46-64 Bs1 S --         44 1.47 0.033 --
07N04215 64-86 Bs2 S --         27 1.48 0.020 --
07N04216 86-176 C S --         47 1.48 0.013 --



Taxonomy Tier 2 -1- -2- -3- -4- -5- -6- -7- -8- -9- -10- -11- -12- -13- -14- -15- -15-

pH pH Org Tot Al+˝ Fe CO3 as (--- Base Sat ---) NZ ECEC CEC7 ECEC Al
Depth H2O NaF C C Oxal ODOE CaCO3 NH4 Bases P Ret cmol(+) /Clay /Clay Sat E C ESP
Layer (cm) Horz Prep (------------------------------------------ % --------------------------------------------) kg -1 % dS m-1 %
      4C1a2a 4C1a1a1   4H2a   4G2a       4D8a1

07N04208 0-5 Oe S 4.0     41.64         2
07N04209 5-12 Oa S 3.8     34.97         0
07N04210 12-17 AE S 4.2 7.4   2.48 0.09 0.09   1 1 16   24.33       --
07N04211 17-23 Eg S 4.5 7.7   0.32 0.02 0.03   7 3 10   1.56       --
07N04212 23-38 Bhs S 4.9 11.6   4.71 0.99 1.16   0 0 88   42.00       --
07N04213 38-46 Bw S 5.2 11.1   0.71 0.48 0.10   1 0 39           --
07N04214 46-64 Bs1 S 5.1 10.5   0.37 0.38 0.05   1 0 28           --
07N04215 64-86 Bs2 S 5.1 10.1   0.21 0.27 0.03   11 4 20           4
07N04216 86-176 C S 5.0 9.6   0.09 0.10 0.02   2 1 11           --

Pedon Calculations
Calculation Name Result Units of Measure

Weighted Particles, 0.1-75mm, 75 mm Base 42 % wt
Volume, >2mm, Weighted Average 1 % vol
Clay, total, Weighted Average 0 % wt
Clay, carbonate free, Weighted Average 0 % wt

Weighted averages based on control section: 25-100 cm
